The cold chamber die casting machine for furniture hardware plays an important role in the production of
furniture hardware accessories. The following are its main features:
1. High-precision production: The cold chamber die-casting machine can provide a high-precision casting
process to ensure that the size and shape of furniture hardware accessories meet the design requirements.
2. Efficient production: Cold chamber die-casting machines usually have faster production cycles and high
productivity, and can meet the large-volume needs in furniture production.
3. High-quality surface treatment: Through cold chamber die-casting, high-quality surface treatment can
be obtained, giving the furniture hardware accessories a good appearance and smoothness.
4. Diversified production: The cold chamber die-casting machine can be adapted to the casting of a
variety of materials, including aluminum alloy, magnesium alloy, etc., and can meet the different needs
of furniture hardware accessories.
5. Energy saving and environmental protection: Compared with hot chamber die casting, cold chamber
die casting can usually use energy more efficiently, reduce exhaust gas emissions, and meet environmental
protection requirements.

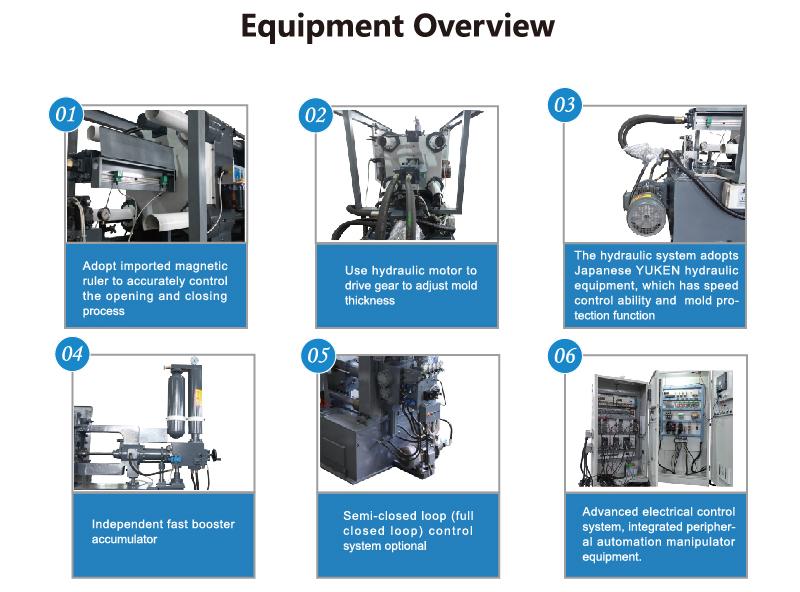

6. Automation control: Modern cold chamber die casting machines are usually equipped with advanced
automation control systems, which can realize the automation of the production process and improve
production efficiency and consistency.
7. Quick mold change: Cold chamber die casting machines are usually designed to be able to quickly
change molds to adapt to the production needs of different types of furniture hardware accessories
and improve production flexibility.
8. Stability and reliability: The cold chamber die casting machine has stable working performance and
reliable operating system, and can operate stably for a long time to ensure production efficiency and
product quality.
Specification
| LH series of standard parameter table (180 t) | ||
| ITEMS | Unit | Specification |
| Clamping Force | KN | 1800 |
| Opening stroke | mm | 380 |
| Die thickness(Min--Max) | mm | 200～550 |
| Space between tie bars | mm | 480*450 |
| Ejector stroke | mm | 80 |
| Ejector force | KN | 110 |
| Injection position（0 as center） | mm | 0，-140 |
| Injection force（intensification) | KN | 270 |
| Injection stroke | mm | 350 |
| Plunger diameter | mm | ￠50 ￠60 ￠70 |
| lnjection weight(aluminum) | Kg | 2.4 |
| Casting pressure (intensification) | Mpa | 112/78/57 |
| Max. casting area(40Mpa) | CM2 | 450 |
| Injection plunger penetration | mm | 130 |
| Diameter of pressure chamber flange | mm | 110 |
| Height of pressure chamber flange | mm | 10 |
| Max.working pressure | MPa | 14 |
| Motor power | Kw | 11 |
| Dimensions (L*W*H) | m | 5.22*1.5*2.35 |
| Machine lifting reference weight | T | 6.7 |
| Oil tank capacity | L | 600 |
will not be changed without notice)
ABOUT US
Bengbu Longhua Die Casting Machine Co.,Lid is a company based in Bengbu City,Anhui Province,
China.It specializes in the manufacturing of die casting machines and related equipment.
Established in 1982,Longhua Die Casting Machine Co.,Ltd has been involved in the die casting
industry for several decades.The company focuses on research,development,production,and
sales of various types of die casting machines.The company's product range covers cold chamber
die-casting machines,die-casting manipulators,industrial robots and peripheral equipment of
die-casting machines to meet the needs of different customers.
